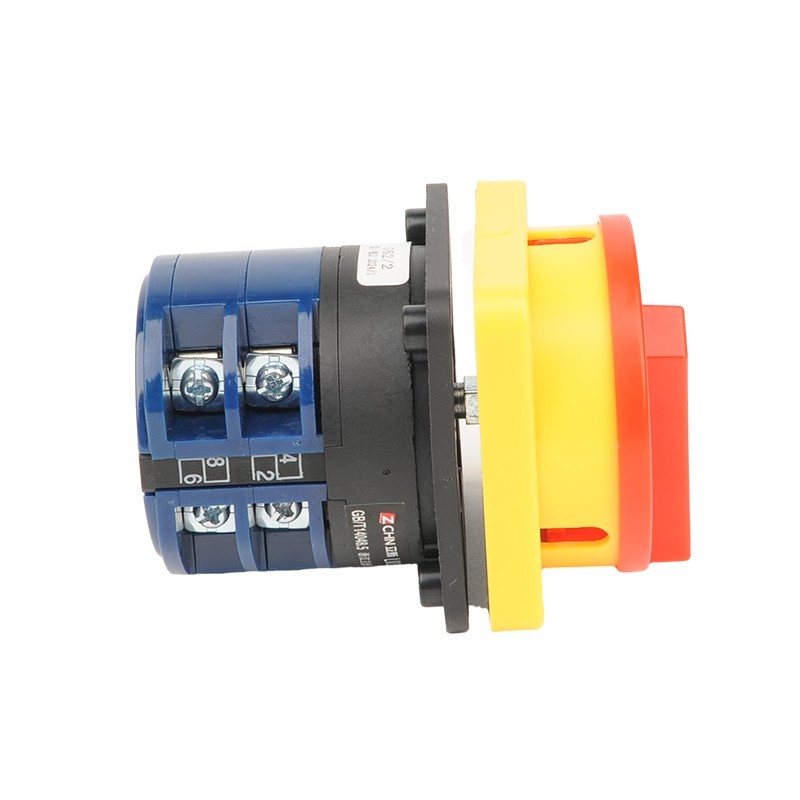

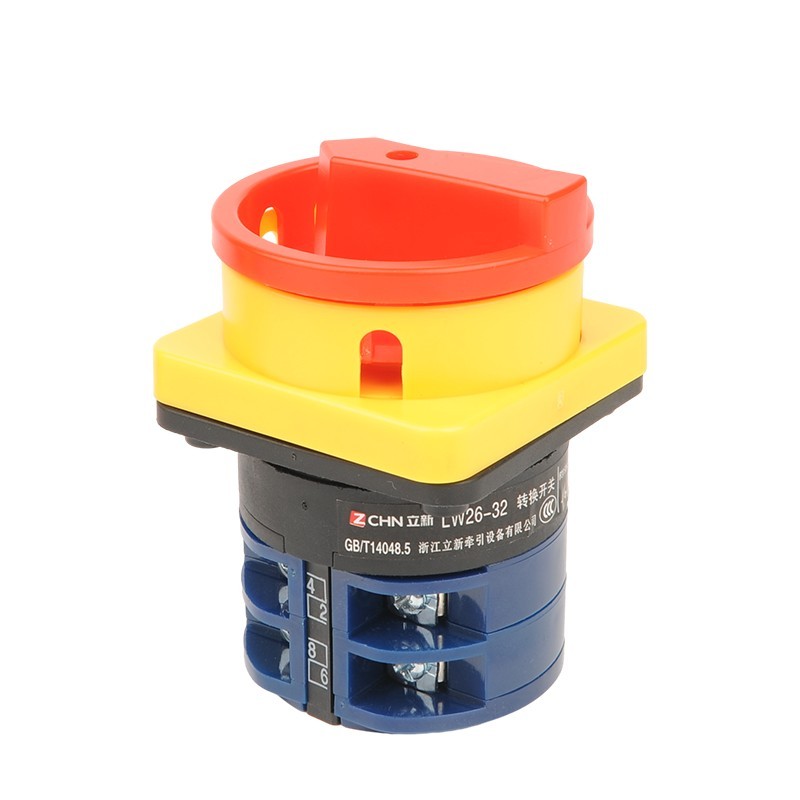

LW26GS Padlock Type Power Cut-Off Cam Switch

LW26GS Series Padlock Type Power CUT-off Switch is the derivative product of LW26 series.This switch is mainly used as a power switch that is required to be padlocked in machine tools,which can be locked by padlock on connect and disconnect position to prevent misoperation and the operation of unauthorized person.And our products comply with the certification of GB/14048.3,GB14048.5 and EN60947-5-1.

Model:LW26GS-32A/2P

Send Inquiry

Product Description

As the professional manufacturer and supplier,we would like to suggest you to buy our Lixin LW26GS series universal cam switch.We all know that LW26GS switch is a powerful and stable performance electrical control element,which is widely used in various occasions that need to switch,control and protect the circuit.

LW26GS cut-off switch has following features.Multi-gear selection:this switch provides a variety of gear combinations,such as 2nd,3rd,4th,etc,which can meet different circuit switching requirements.Large contact capacity:it is made of high quality copper or silver point,excellent electrical conductivity,so it can afford larger current and voltage,ensuring the long time stable operation. Safe and reliable: the shell is made of flame retardant material,it has good insulative performance and high temperature resistance,ensuring the use of safety effectively.Easy installation:you can install the switch by diverse ways,such as panel installation and rail installation and so on,it is convenient for users to install and remove quickly.LW26GS can provide you safe and reliable solutions of controlling and switching.

If you wonder some other details about the LW26GS padlock type power cut-off switch,please contact us,we will offer you best service and reply you quickly.

Lixin Lathe Padlock Type Power Cut-Off Cam Switch categorize

The padlock type switches are available in six current ratings: 20A, 25A, 32A, 63A, 125A, and 160A.

Lixin Lathe Padlock Type Power Cut-Off Cam Switch Parameter (Specification)

Parameter	LW26GS-20	LW26GS-25	LW26GS-32 LW26GS-32F	LW26GS-40 LW26GS-40F	LW26GS-63 LW26GS-63F	LW26GS-125	LW26GS-160	LW26GS-250
Ue (V)	440	440	440	440	440	440	440	440
Ith (A)	20	25	32	40	63	125	160	250
Ie
AC-21A (A)	20	25	32		63	100	150
AC-22A (A)	20	25	32		63	100	150
AC-23A (A)	15	22	30	37	57	90	135	200
Rated control power (P)
AC-23A (kW)	7.5	11	15	18.5	30	45	75

Lixin Lathe Padlock Type Power Cut-Off Cam Switch Specification and model

Specification and model	Panel specification	Overall dimension
Specification and model	Panel specification	A	C	L	H	E	F	D1	D2
LW26GS-20/04-1	M1	□48	43	42	33	36	36	中8.5	φ4.5
LW26GS-20/04-2	M2	□64	43	43	42	48	48	φ10	φ4.5
LW26GS-20X/04-1	M1	□48	42	54	33	36	36	φ8.5	φ4.5
LW26GS-20X/04-2	M2	□64	42	55	42	48	48	φ10	φ4.5
LW26GS-25/04-1	M1	□48	45.2	50	33	36	36	φ8.5	φ4.5
LW26GS-25/04-2	M2	□64	45.2	51	42	48	48	φ10	φ4.5
LW26GS-32/04-2	M2	□64	58	55	42	48	48	φ10	φ4.5
LW26GS-32/04-3	M3	□88	58	55	52	68	68	φ13	φ6
LW26GS-40/04-2	M2	□64	58	55	42	48	48	φ10	φ4.5
LW26GS-40/04-3	M3	□88	58	55	52	68	68	φ13	φ6
LW26GS-40F/04-2	M2	□64	64	55	42	48	48	φ10	φ4.5
LW26GS-40F/04-3	M3	□88	64	55	52	68	68	φ13	φ6
LW26GS-63/04-2	M2	□64	66	72.5	42	48	48	φ10	中4.5
LW26GS-63/04-3	M3	□88	66	72.5	52	68	68	φ13	φ6
LW26GS-63F/04-2	M2	□64	64	55	42	48	48	φ10	φ4.5
LW26GS-63F/04-3	M3	□88	64	55	52	68	68	φ13	φ6
LW26GS-125/04-3	M3	□88	84	88	52	68	68	φ13	φ6
LW26GS-160/04-3	M3	□88	88	100	52	68	68	φ13	φ6
LW26GS-250/04-3	M3	□88	108	108	52	68	68	φ13	φ6
