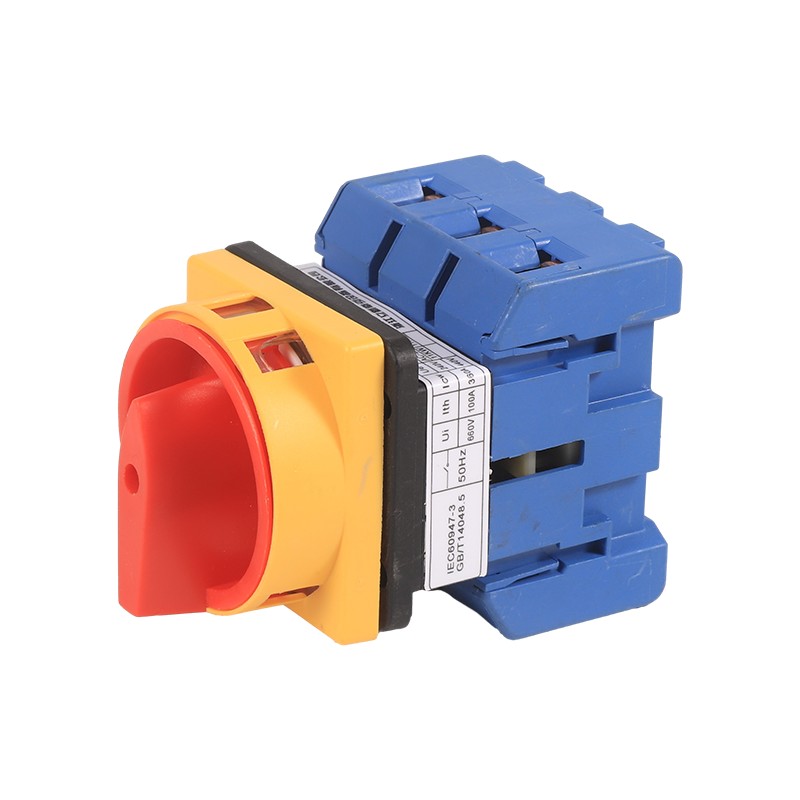

LW30 Series Universal Switch

LW30 series universal switch is an electrical control device integrating multi-function and high reliability. It is mainly used in industrial and civil electrical systems with AC 50Hz, rated operating voltage 440V and below, and rated current up to 100A. With its excellent electrical performance and modular design concept, the product is widely used as the main power switching device in the risk control system, central air conditioning unit, water supply and drainage pumping station and other scenes.

Send Inquiry

Product Description

LW30 switch has the advantages of small size, compact structure, exquisite material selection, good insulation, finger protection function, safety and reliability, you can add other contact blocks on the 3-pole standard block without removing the switch, the switch insulation distance is greater than other similar switches, fast disconnection speed, suitable for DC switch.

This series of switches adopts a composite structure of high-strength engineering plastics and high-quality alloy contact materials, and maximizes space utilization through three-dimensional contact layout. The core component adopts alloy double break contact system, with the patent design of fast breaking mechanism, effectively inhibit the arc generation. The products have passed ISO9001 quality management system certification and CCC and other international certifications. With its compact structure, excellent safety performance and flexible configuration scheme, this series of switches has become an important electrical component in intelligent buildings, industrial automation and new energy fields.

Working conditions of Lw30 Series Load Disconnect Change over Switch

Normal Working Conditions

(1) The ambient air temperature does not exceed +40 degrees, and the average temperature within 24 hours does not exceed 25°C;

(2) The lower limit of the ambient air temperature does not exceed -25°C

(3) The altitude of the installation location does not exceed 2000m;

(4) When the maximum temperature is +40°C, the relative humidity of the air does not exceed 50%. Higher relative humidity is allowed at lower temperatures, such as 90% at 20°C. Special measures should be taken to deal with condensation that occasionally occurs due to temperature changes.

Installation Conditions

(1) The switch is installed in environmental conditions of pollution level 3;

(2) Install according to the instructions provided by the factory.

Classification

1. According to usage categories

(1)AC-23A

(2)AC-3

2. According to the protection level provided (1) without switch box: IP20

(2) With thermoplastic sealed switch box: IP65

Auxiliary Specification Code

Number of levels: 3 for third level, 4 for fourth level

Additional contacts: 0 without, 1 with side-mounted auxiliary contacts

Intermediate terminal: 0 without, 1 with neutral terminal

Ground terminal: 0 without, 1 with ground terminal

Product model and its meaning

Lixin Lw30 Series Load Disconnect Change over Switch Parameter (Specification)

Model specifications	LW30-25(20)	LW30-32	LW30-40	LW30-63	LW30-80	LW30-100
Agreed heating current lth A	25(20)	32	40	63	80	100
Rated operating voltage Ue V	240 440	240 440	240 440	240 440	240 440	240 440
Rated value le/Pe
AC-21A A/kW	20/- 20/-	32/- 32/-	40/- 40/-	63/- 63/-	80/- 80/-	100/- 100/-
AC-22A A/kW	20/- 20/-	32/- 32/-	40/- 40/-	63/- 63/-	80/- 80/-	100/- 100/-
AC-23A A/kW	15/4 15/7.5	22/5.5 22/11	30/7.5 30/15	43/11 43/22	57/18.5 57/30	70/22 70/37
AC-3 A/kW	11.7/3 11.7/5.5	15/4 15/7.5	22/7.5 22/11	36/11 36/18.5	43/15 43/22	57/18.5 57/30
