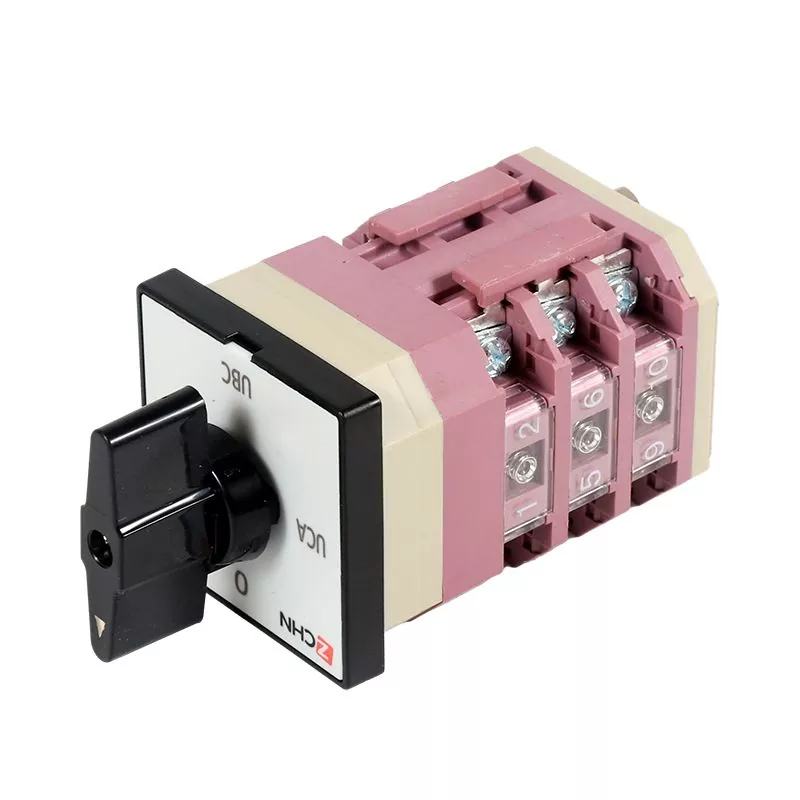

                Rotary Cam Switch
                • Rotary Cam SwitchRotary Cam Switch
                • Rotary Cam SwitchRotary Cam Switch
                • Rotary Cam SwitchRotary Cam Switch
                • Rotary Cam SwitchRotary Cam Switch
                • Rotary Cam SwitchRotary Cam Switch

                Rotary Cam Switch

                As the professional manufacturer, we would like to provide you Lixin Rotary Cam Switch. The rotary switch is suitable for AC circuits up to 440V and DC circuits up to 240V, primarily used for infrequent manual operations such as circuit breaking, closing, and changeover. Additionally, the LXW26-10, LXW26-16, LXW26-20, and LXW26-25 models feature finger-proof terminals, providing added safety benefits. These switches are available in three styles: position style, auto-return style, and position & auto-return style.

                Send Inquiry

                Product Description

                Lixin Manufacturing Company proudly presents our four-position voltmeter selector switch, along with our Rotary Cam Switch, both finely engineered electrical devices designed to offer users convenient solutions for voltage monitoring and circuit control. These switches hold prominent positions in our product line, representing our commitment to innovation in meeting customer demands for versatile and reliable electrical components.

                Lixin Rotary Cam Switch Features:

                Versatility: The Rotary Cam Switch features four different positions, allowing users to easily switch and select between various voltmeters for monitoring, catering to a range of monitoring needs.

                Flexibility: Whether it's on industrial control panels or laboratory test benches, this selector switch can adapt to various scenarios, providing stable and reliable performance.

                Durability: Constructed using high-quality materials and subjected to rigorous testing, our switch ensures exceptional durability and performance stability in diverse environments.

                Ease of Installation: With simple installation and user-friendly operation, users can install and use the switch without the need for specialized skills, saving time and effort.

                Whether you're an engineer, a technician, or an everyday user, our four-position voltmeter selector switch offers a reliable and convenient solution for voltage monitoring. Feel free to contact our sales team for more information and to order this outstanding product.

                Lixin Rotary Cam Switch Product model and its meaning

                Note: ① Hot and humid belt product code: TH or TA.

                ② Conversion Angle code: 30°(3), 45°(4), 60°(6), 90°(9)

                Note: Use code: Q1- Direct start 2 sections Q2- Direct start 3 sections N- reversible conversion

                S-two-speed motor Variable speed SN- two-speed motor variable speed, reversible.

                Lixin Rotary Cam Switch Parameter (Specification)

                Rated insulation voltage         Ui        V


                Conventional heating current  lth       A


                Rated operating voltage          Ue      V



                Rated working current            le

                AC-15            A



                DC-13            A


                AC-3              A


                AC-4              A


                Lixin Rotary Cam Switch Mechanical and electrical life

                Mechanical life: 0.3x10 times, operating frequency is 120 times/hour.

                Electric life:

                The operating frequency of AC-15 is 0.1x10 ⁶, and the operating frequency is 300 times/hour.

                For DC-13, the operation frequency is 0.1x10 °, and the operation frequency is 300 times/hour.

                The operating frequency of AC-3 is 0.1x10 °, and the operating frequency is 120 hours.

                0.1x10° at AC-4, operating frequency 120 times per hour.

                Lixin Rotary Cam Switch Overall dimensions and mounting dimensions
