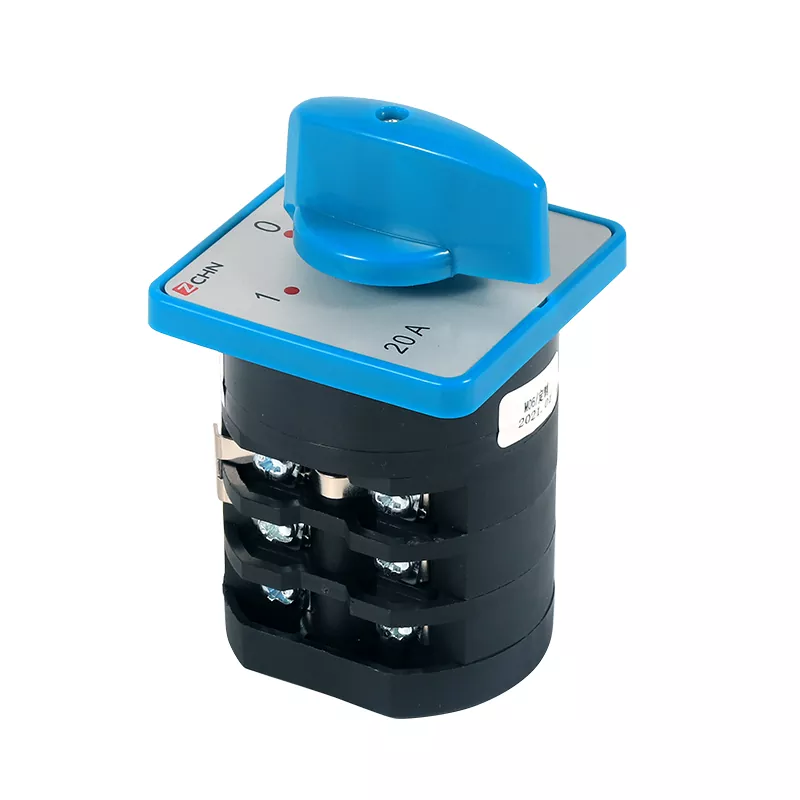

3 Phase Rotary Selector Switch
You can rest assured to buy Lixin 3 Phase Rotary Selector Switch from our factory. 3 Phase Rotary Selector Switches are essential components used in various electrical and mechanical systems to control the positioning or movement of equipment. These switches provide precise control over the operation of machinery, allowing for accurate positioning, speed adjustment, or sequence control.
Send Inquiry
Product Description
As the professional manufacturer, we would like to provide you Lixin 3 Phase Rotary Selector Switch. A three-phase rotary selector switch is a type of electrical switch used in three-phase electrical systems to control the direction of rotation or the connection of three-phase motors or other three-phase electrical equipment. It's commonly used in industrial applications where machinery or equipment requires precise control over its operation.
Rotary Mechanism: Knobs often have markings or indicators to indicate the different available positions.
Contacts: There are multiple sets of electrical contacts arranged in a circle inside the switch, corresponding to different positions of the switch. Each set of contacts is designed to make or break an electrical connection between the input power and the output terminals.
Three Phase: Since it is designed for a three phase system, the switch has terminals for each of the three phases: usually labeled L1, L2, and L3. These terminals connect to the input power supply.
Output terminals: The 3 Phase Rotary Selector Switch also has output terminals to which a load, such as a motor, is connected. These terminals are usually labeled T1, T2, and T3.
Operating Modes: 3 Phase Rotary Selector Switch allow the user to choose between different operating modes or configurations, such as forward and reverse rotation of a motor or different connection configurations for various three-phase devices.
Lixin 3 Phase Rotary Selector Switch Mechanical life and electrical life
Mechanical life: 0.1x106 times, operating frequency is 120 times/hour.
Electrical life: When AC-23A is used,it is 0.03x106 times, operating frequency is 120 times/hour.
When AC-3 is used, it is 0.03x106 times, and the operating frequency is 120 times/hour.
When AC-4 is used, it is 0.03x106 times, and the operating frequency is 120 times/hour.
Lixin 3 Phase Rotary Selector Switch Technical Parameters
|
Model specifications |
HZ5D-10 |
HZ5D-20 |
HZ5D-40 |
|
Rated working voltage Ue V |
440 |
440 |
440 |
|
rated heating current th A |
10 |
20 |
40 |
|
Rated operating current le A |
4 |
8 |
16 |
|
Rated control power P kW |
1.7 |
4 |
7.5 |
Lixin 3 Phase Rotary Selector Switch Overall dimensions and installation dimensions
