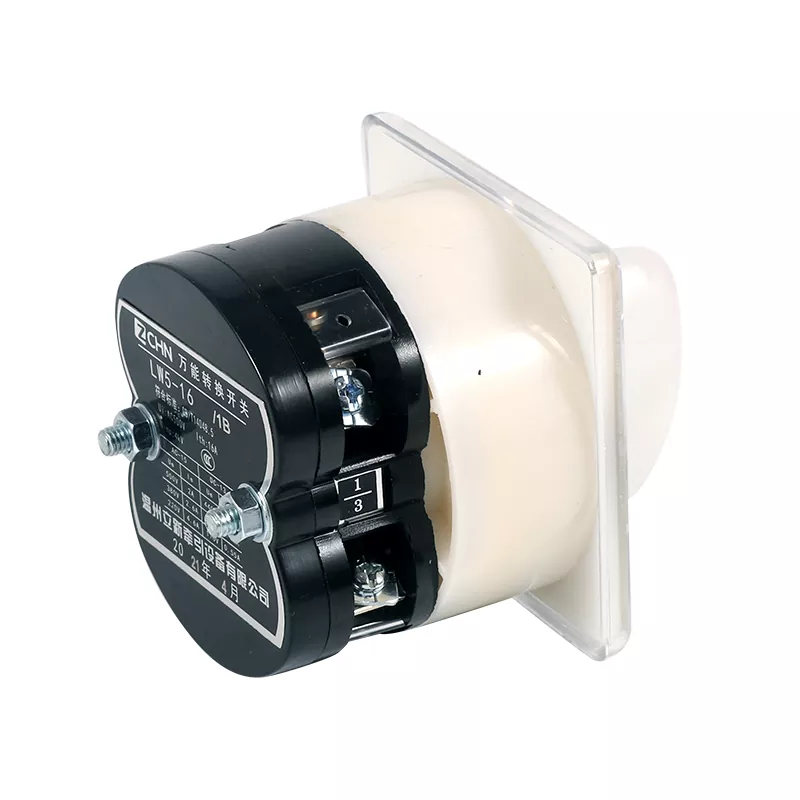

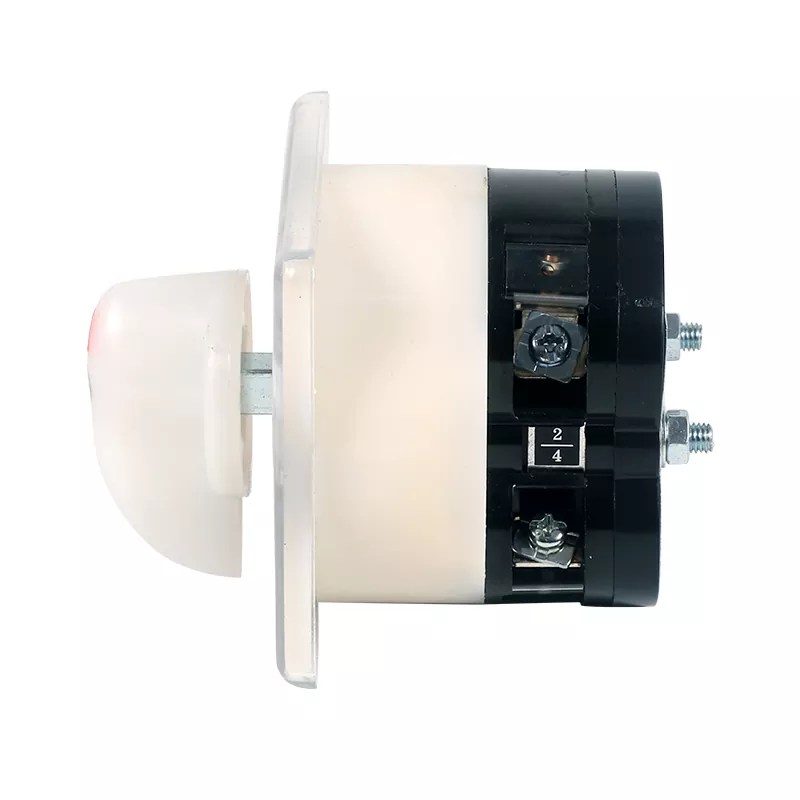

Rotary Cam Changeover Switch
You can rest assured to buy Lixin Rotary Cam Changeover Switch from our factory. A rotary cam changeover switch, also known simply as a cam changeover switch or rotary switch, is an electrical switch used to change the connection of an electrical circuit from one source to another. It typically operates by rotating a cam mechanism, which controls the position of electrical contacts to redirect power flow.
Send Inquiry
Product Description
Introducing the Lixin Rotary Cam Changeover Switch, a versatile solution for electrical control needs. This compact switch offers seamless switching between different electrical circuits with ease. Its innovative design ensures reliability and precision, making it a valuable asset for various industrial applications. With straightforward installation and user-friendly operation, the Lixin Rotary Cam Changeover Switch is the go-to choice for efficient and dependable control in any setting.
Lixin Rotary Cam Changeover Switch Parameter (Specification)
- Voltage and Current Ratings: Versatile compatibility.
- Contact Configuration: Supports NO and NC contacts.
- Operating Temperature: Reliable performance in various conditions.
- Insulation Resistance: Ensures safety and reliability.
- Mechanical Durability: Robust construction for longevity.
|
use |
Master control |
Direct control motor |
|
Ith A |
16 |
16 |
|
Ue V |
125220250380400500 |
380 |
|
Ie |
||
|
AC-15 A |
4.6 2.6 2.0 |
|
|
AC-3 A |
12 |
|
|
AC-4 A |
3.5 |
|
|
DC-13 Double break point A |
0.55 0.27 0.14 |
|
|
DC-13 Four-break point A |
0.82 0.41 0.20 |
|
Mode of operation |
Feature code |
Actuator position |
|
Self-replicating type |
A |
0°-45° |
|
B |
45°→0°-45° |
|
|
Locating type |
C |
0° 45° |
|
D |
45° 0° 45° |
|
|
E |
45° 0° 45° 90° |
|
|
F |
90° 45° 0° 45° 90° |
|
|
G |
90° 45° 0° 45° 90° 135° |
|
|
H |
135° 90° 45° 0° 45° 90° 135° |
|
|
l |
135° 90° 45° 0° 45° 90° 135° 180° |
|
|
J |
120° 90° 60° 30° 0° 30° 60° 90° 120° |
|
|
K |
120° 90° 60° 30° 0° 30° 60° 90° 120° 150° |
|
|
L |
150° 120° 90° 60° 30° 0° 30° 60° 90° 120° 150° |
|
|
M |
150° 120° 90° 60° 30° 0° 30° 60° 90° 120° 150° 180° |
|
|
N |
45° 45° |
|
|
P |
90° 0° 90° |
Lixin Rotary Cam Changeover Switch Mechanical and electrical life
Mechanical life: 0.3×10⁶ times, operating frequency is 300 times/hour.
Electrical life: AC-15, DC-13 time is 0.1×106, operating frequency is 300 times/hour.
At AC-3, 0.1×10⁶ times, and the operating frequency is 120 times/hour.
AC-4 is 0.1×10⁶ times, and the operating frequency is 120 times/hour.
Lixin Rotary Cam Changeover Switch Overall dimensions and mounting dimensions
The compact design of the Lixin Rotary Cam Changeover Switch is perfect for industrial spaces where space is limited. Its streamlined design maximizes functionality without sacrificing space.
Its mounting dimensions are carefully engineered for easy installation, compatible with standard configurations. Whether retrofitting or integrating into new setups, it offers hassle-free mounting, saving time and effort during installation.
