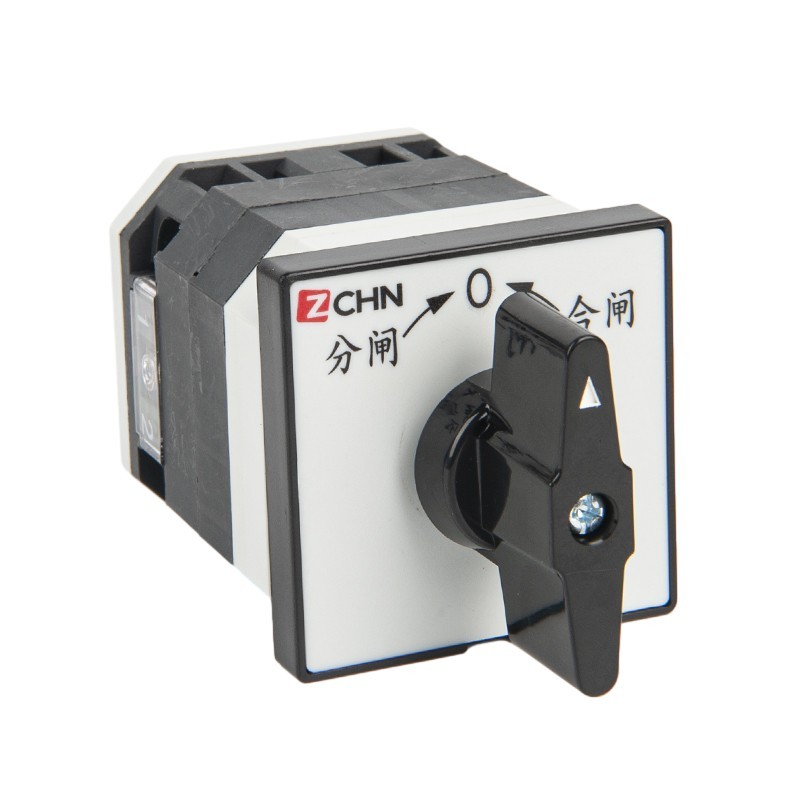

LW12-16A/1 Self-Reset Rotary Cam Switch

You can buy the Lixin Self-Reset Rotary Cam Switch from our factory with confidence,this product is applied to transfer electrical control line in circuit and electrical measuring instrument,which can also control electromotor directly.

Model:LW12-16A/1

Send Inquiry

Product Description

As the cam switch professional manufacture,we prefer to advise you to buy Lixin LW12 series self-reset rotary cam switch,which is a type of electrical switch that uses a rotating mechanism to make or break connections.LW12 series becomes the reliable choice in industrial control field by its brilliant performance and flexible operation.This switch use modular design,the number of contacts can be freely combined according to actual needs,and easily achieve a variety of circuit conversion functions to meet your diverse control needs.

LW12 universal switch has following advantages.Stable and reliable :LW12 use high quality materials,strong structure and reliable contacts to ensure long time operation.Even though in bad environment,LW12 can also perform well.Flexible operation:hand shank operate easily,position clear,it can realize manual, automatic and other control methods,convenient and efficient.Safety protection:LW12 switch is equipped with protective casing,which can prevent electric shock and dust intrusion effectively to guarantee operator's safety.

LW12 series self-reset rotary cam switch is widely used in machine tools, metallurgy, chemical industry, textile and other industries,LW12 is suitable for motor forward and reverse control, power supply switching, measurement circuit conversion and other occasions. Choosing LW12 universal transfer switch is to choose an efficient, reliable and safe control solution!

Lixin Self-Reset Rotary Cam Switch Type specification

Rated insulation voltage Ui V		500
Agreed heating current	Ith A	16
Rated working voltage	Ue V	220	380
Rated operating current	le
AC-15 A		4.6	2.6
DC-13 A		0.27
AC-3 A			12
AC-4 A			12
