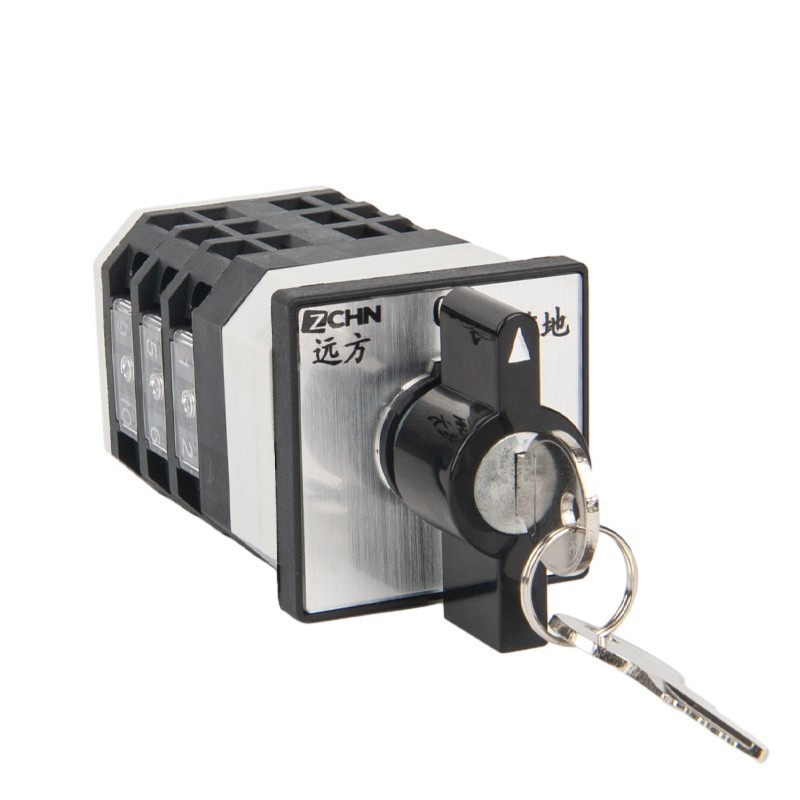

LW12-16A/3P Universal Switch With Lock.

You can rest assured to buy our Lixin LW12-16A/3P universal switch with lock,this product is used to transfer electrical control line in circuit and electrical measuring instrument,which can also control electromotor directly.It can be seen as a universal switch,providing smooth and efficient transitions between different modes or power sources.This switch is the better applications for requiring flexibility and reliability in controlling electrical circuits,such as controlling motors,generators,and power distribution systems.

Model:LW12-16A/3P

Send Inquiry

Product Description

As the professional manufacturer with 20 years history,we would like to advise you to purchase our Lixin LW12-16A/3P with lock universal switch.This switch is the innovative device that is specifically designed for industrial control, integrating safety protection and multi-function switching.This product is made of high strength flame retardant engineering plastic shell,it has excellent electrical performance and more than one hundred thousand times mechanical life with high load capacity.Its core advantage is unique mechanical locking structure,can prevent unauthorized and accidental operation by rotary lock design to ensure the device operate safely in electrical system,automated production line and some crucial scene.

The switch supports multi-gears free combination configuration,compatible with multi wiring modes,can achieve many complex control functions,such as power sources switching,motor reversal and commutation of measuring instrument and so on.The modular contact set is designed for quick maintenance and available in an IP65 sealed version for moisture,dust and other harsh environments.Our product conforms to international quality standards,be wide used in power distribution cabinet,hoisting equipment and other fields.It is the ideal solution of improving system safety and operation reliability.

Lixin Self-Reset Rotary Cam Switch Type specification

Rated insulation voltage Ui V		500
Agreed heating current	Ith A	16
Rated working voltage	Ue V	220	380
Rated operating current	le
AC-15 A		4.6	2.6
DC-13 A		0.27
AC-3 A			12
AC-4 A			12
