China milling machine switch Manufacturer, Supplier, Factory

As the professional manufacturer, we would like to provide you high quality Lixin 4 Position Cam Switch. The rotary switch is suitable for circuits operating at 440V AC (at 50Hz) or below, as well as 240V DC circuits. It is primarily used for infrequent manual operations involving circuit breaking, closing, and changeover. Additionally, this series adheres to industry standards including GB14048.3, GB14048.5, IEC60947-3, and IEC60947-5-1, ensuring compliance and reliability in electrical applications.

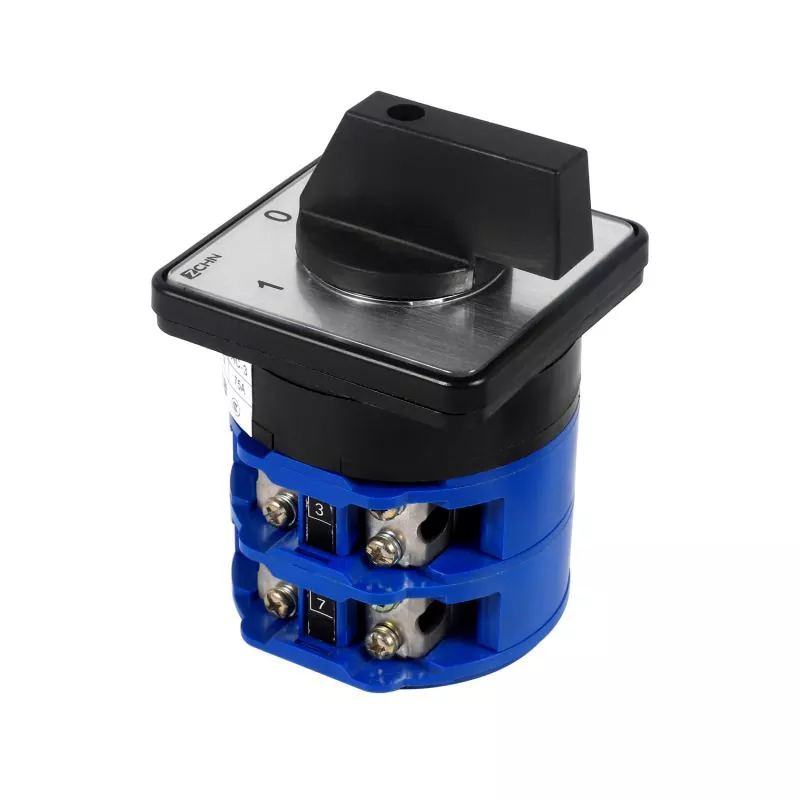

LW26GS series universal switch is an upgraded derivative product developed in LW26 series for industrial safety protection needs. Designed for industrial scenarios such as machine tools and automated production lines, the product innovatively integrates a dual locking safety mechanism, which can achieve physical locking at the “OFF” bit when the power is cut off, and mechanical locking at the“ON” bit when the equipment is running, effectively preventing misoperation and unauthorized personnel intervention.

The LW26GS universal transfer switch is a multifunctional electrical control component, widely used in industrial automation, power systems, and mechanical equipment, for realizing circuit switching, power conversion, and multi-channel control. This switch adopts a modular design and supports multi-position operation. It enables free switching of different circuits through rotating the handle, meeting the needs of most medium and low-voltage scenarios. Its core advantage lies in the flexible contact configuration. Users can customize the combination of normally open and normally closed contacts according to their requirements to achieve complex interlock control or signal switching. In addition, the LW26GS uses high-elastic silver alloy contacts and high-temperature-resistant insulating materials to ensure low contact resistance and long service life, while also having excellent arc resistance and wear resistance. The switch is equipped with clear position indicators and mechanical positioning devices, providing a clear operating feel, effectively avoiding accidental contact, and supporting panel or rail installation, with strong compatibility. It is an efficient solution in the electrical control system.

You can purchase Lixin LW30 series load disconnect switch with confidence.LW30 series is mainly applied to AC 50Hz,rated operation voltage 440V and below,rated current to 100A electrical circuit,which is used as the master switch of ventilation installation,air conditioner and water pump system,and also can directly control small flow AC motor.Our products conform to GB/T14048.3,GB/T14048.5 and EN60947-5-1 authentication.

You can purchase Lixin LW5-16/3P universal switch with confidence,the following messages are the meaning of “LW5-16A/3P”.“LW5”means the product series,“16A”represents the agreed heating current which is 16 ampere,“3P”stands for the number of poles is 3 poles,this switch is suitable for transforming electrical control lines in circuit,and also can control the start,reversible transformation,speed changing and so on.

LW5-40 2 POLES 0-1 40AMP Cam Switch of product Characteristics Multi-speed switching: It can realise switching of different circuit connection states to meet a variety of electrical control needs, for example, it plays an important role in the scenarios of motor forward and reverse control, dual power switching and so on. Bipolar design: With two electrodes, it can control the on-off of two circuits at the same time, which is suitable for the control of two independent circuits at the same time or the control of electrical equipment with two poles. Current Capacity: Rated current is 40A, able to withstand large current loads, can be used in high current demanding circuits to ensure stable circuit operation, not easy to be damaged by overloading.
